Elbow Beveling Mandrels

for our

MF Series Pipe beveling equipment

Essential tools for the Pipe fitter and Welder

RSW International, as the Official Distributor for DWT - PIPE TOOLS in Portugal, offers you the perfect solution for Cold Pipe beveling in your Pipe Shop or in the field.

The portable elbow beveling machine is add on to our pipe beveling machines and exclusively used for beveling or internal bevelling of pipe elbows for production or repairs.

How does the elbow beveling machine work ?

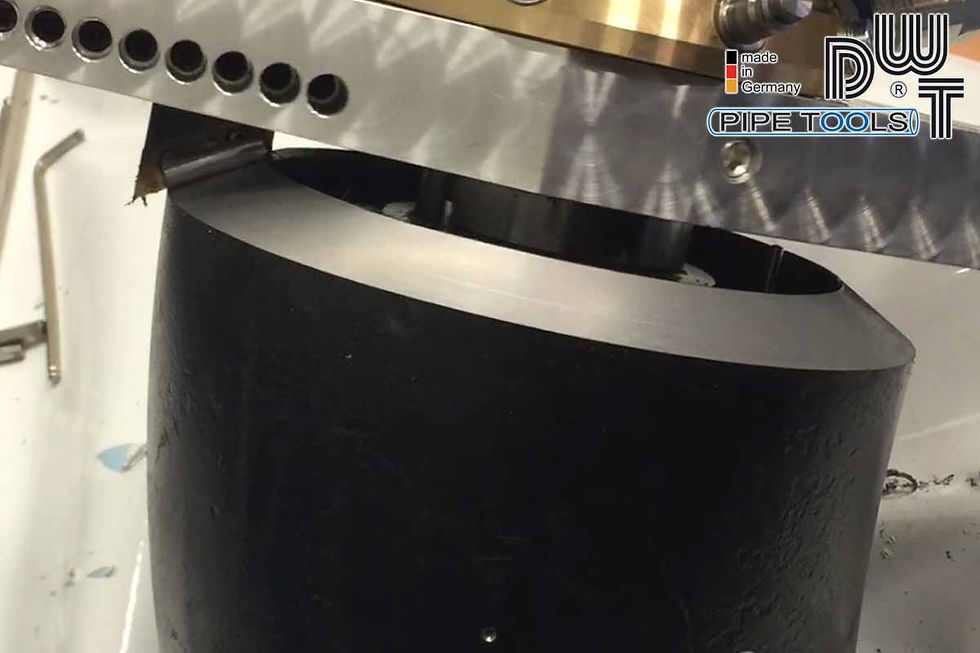

Liners hold the machine in place while fitting the elbow to the pipe. Dimension scale on the liners make centering easy. With the standard liners it is possible to install the mandrel close to the pipe end. With the help of additional liner extension bits mandrel can be installed deeper for beveling the inside diameter of the pipe. These elbow mandrel works according to the same basic principle; Mandrel is clamped to a pipe elbow via screws on the inner diameter of the mandrel housing. Each extendable leg can be adjusted individually so centering is easily done. Legs have freely rotating heads to protect the inner surface of the pipe from damage when tightening the legs.

Elbow Beveling Machine
✓ Working Range: max. 18 inch OD
✓ Liners for easy setup
✓ Easy beveling of pipe elbows
✓ Made in Germany

Pipe edge preparation is the first and important step in the pipe welding process. Especially for heavy wall pipes the weld edge of the pipe end must be in a perfect shape to achieve the best welding result.





If you can't find what you are looking for here, don't hesitate to contact us at contact@rswinternational.pt or use our contactform and ask for a solution that fits your needs.






Advantages:


Perfect beveling of pipe elbows


Add on for pipe beveling machines


Easy and fast setup


Non-damaging clamping legs

Elbow beveling mandrels


Add on for MF3i
Clamping range ID-ID:

1,69-4,2" (43-106 mm)
Working range OD-OD:

2-4" (60,5-114 mm)


Add on for MF3i
Clamping range ID-ID:

4-6" (102-153 mm)
Working range OD-OD:

4,5-6" (114,3-160 mm)


Add on for MF4i
Clamping range ID-ID: 4,88-7,99" (124-203 mm)
Working range OD-OD:

6-8" (168,1-219 mm)


Add on for MF5i
Clamping range ID-ID:

8,5-12" (216-310 mm)
Working range OD-OD:

10-12" (273-332 mm)


Add on for MF5i
Clamping range ID-ID: 10,7-17,9" (273-455 mm)
Working range OD-OD: 12-18" (332-460 mm)

TE-43

Add on for MF3i
Clamping range ID-ID:

1,69-4,2" (43-106 mm)
Working range OD-OD:

2-4" (60,5-114 mm)
